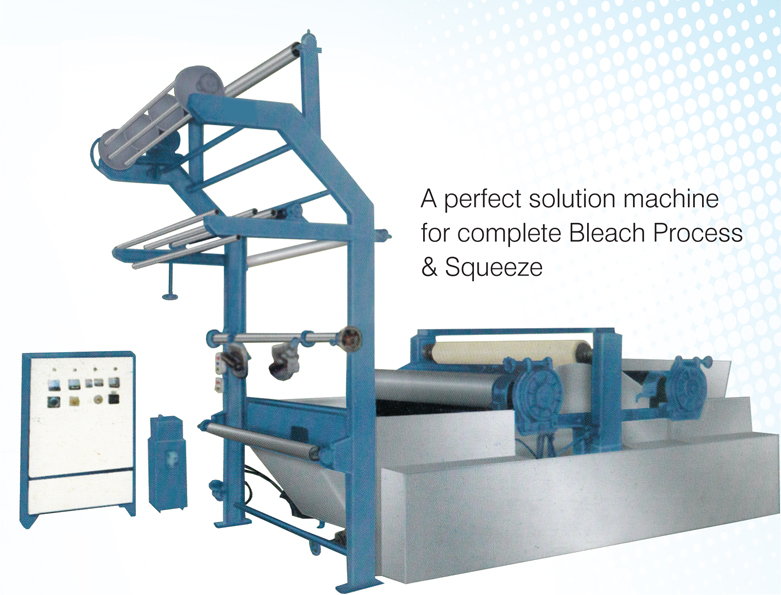

Super Jumbo Jigger JT-10 (1000 kg. Capacity)
Products
- . Semi Automatic Dyeing Jigger
- . Semi Automatic Jumbo Jigger machine
- . Heavy Duty Dyeing Jigger with S.S.Structure
- . Semi Automatic Jumbo Jigger for Bleaching
- . Jumbo Automatic Maxi Jigger machine
- . Super Jumbo Jigger JT-10
- . Winch Machine for scouring & Bleaching
- . Gutkha Mixing Machine
- . Fully Automatic Dyeing Jigger With S.S.Structure

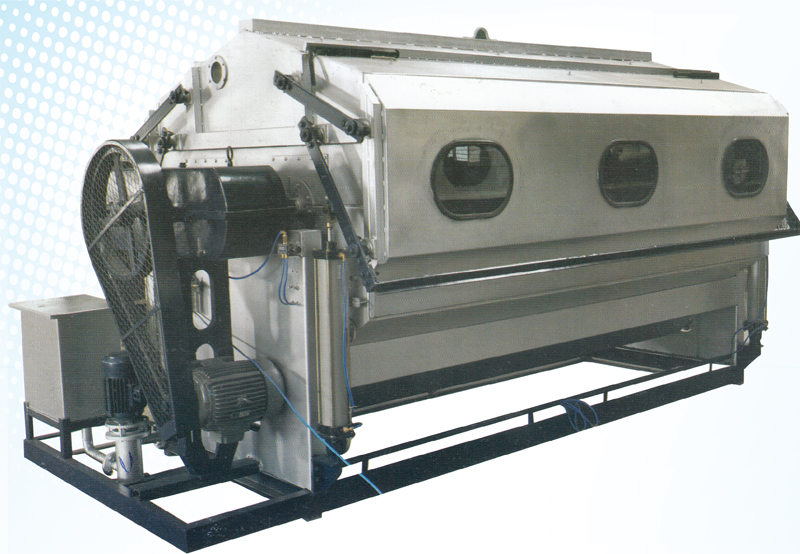

Jumbo Automatic Maxi Jigger Machine
Available Width : 48" To 150" Roller Width
| Roll Center | 31"C | 36"C | 42"C | 46"C | 48"C |
| Capacity | 350 Kg. | 500 Kg. | 750 Kg. | 1000 Kg. | 1500 Kg. |
| Batch Dia | 900 mm | 1100 mm | 1300 mm | 1500 mm | 1600 mm |
Available Width : 48" To 150" Roller Width
Roll Center : 25", 30", 36", 42", 46"
Capacity : 225 Kg., 350 Kg., 500 Kg., 750Kg., 1000 Kg. (250 Gsm)
Temperature Controller
Auto R/F System (Optional)
S.S. Structure with M.S. Base Frame
Inverter Drive
Main Roll S.S. Claded
Circulation System with 2.0 H.P. Motor & S.S. Vertical Pump

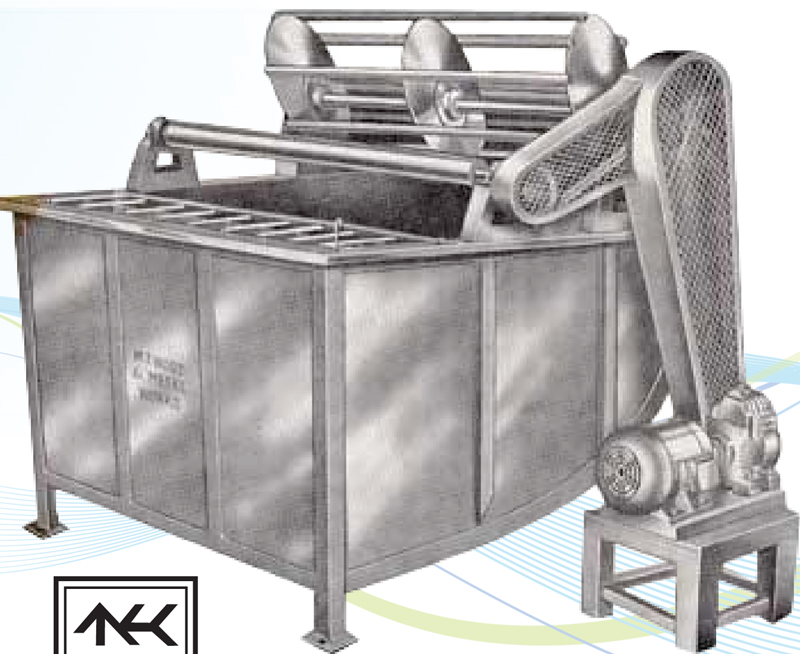

Winch Machine for Scouring & Bleaching
Capacity : 300 to 1000 Kg.
M.S. Frame
S.S. Tank
S.S. Winch
S.S. Guider Winch
S.S. Perforated Partition
Direct & Indirect Heating S.S. Coils
S.S. Pegral Bar (Ladder)
Drain
